The Best Hitch Setup for a Toyota RAV4
The receiver is a lookup. What matters on a crossover is how little spare payload you have, and how low the tube sits.
Disclosure: we earn a commission if you buy through the Amazon links on this page, at no extra cost to you. Commission never decides a verdict or a ranking position - read our editorial policy and affiliate disclosure.
How we assessed these: Receivers are vehicle-specific and this site publishes no fitment data - use the manufacturer's own fit guide for your exact year, trim and drivetrain, and read your own door-jamb placard for the ratings. What is assessed below is the hardware that goes into the receiver once it is fitted, from each maker's published specifications.
Short answer
On a RAV4, fit a loaded ball mount in the drop you measure, buy the ball by the stamp on your coupler, and add a plug-in wiring harness rather than splicing. The hardware is ordinary; the limit that decides what you can actually pull is payload, which is printed on your door-jamb placard.
Crossover towing goes wrong in a different place than truck towing does. Nobody overloads a RAV4 receiver - the hardware that fits a 2 in tube is rated far beyond anything this vehicle is allowed to pull. What runs out is payload: the combined weight of people, cargo and tongue weight the vehicle is certified to carry. Load four adults and a weekend of gear and a surprising amount of that allowance is gone before the trailer is even hitched.

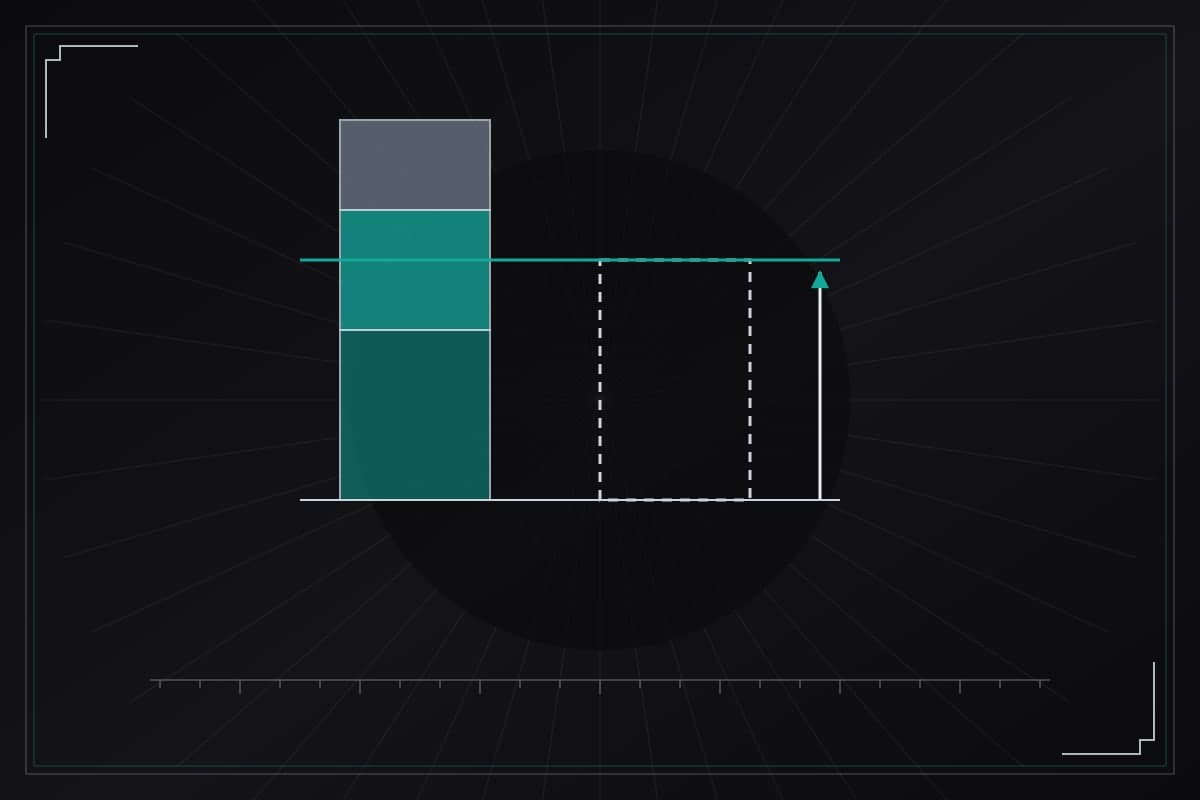

Read the placard before you shop
The sticker inside the driver's door frame carries a line reading that the combined weight of occupants and cargo should never exceed a stated figure. That number is the one that binds on a crossover. Tongue weight counts against it - every pound the trailer puts on the ball is a pound of payload spent - and so does the ball mount itself, the roof box and the dog.
Work it in that order and the shopping list falls out by itself: subtract the people and gear you actually carry, and what remains is your tongue-weight ceiling. Because tongue weight should sit at 10 to 15 percent of the loaded trailer, that ceiling tells you the heaviest trailer this vehicle should be behind - often well under the headline tow rating. Payload and tow rating are two different limits, and on a unibody crossover payload is almost always the binding one.

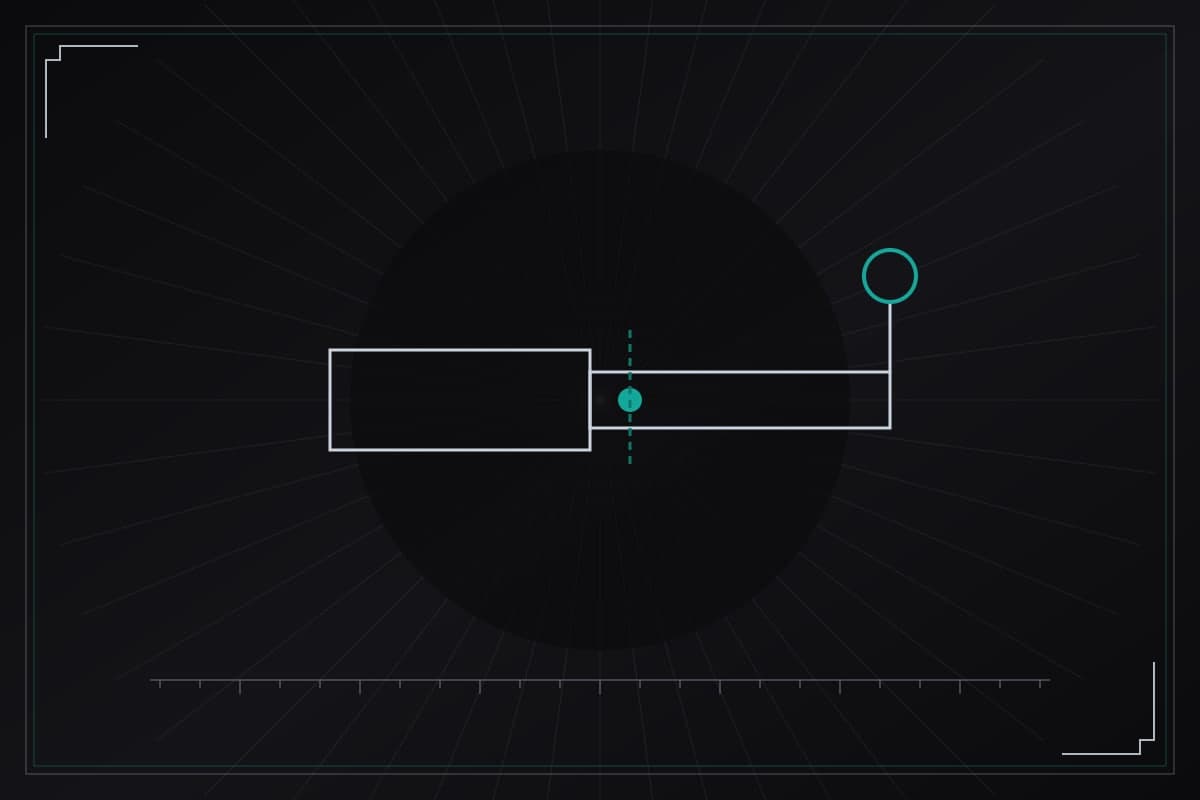

Measure the drop, do not guess it
A RAV4 receiver sits lower than a pickup's, which flips the usual assumption. Owners used to truck advice reach for a 4 or 6 in drop mount and end up towing nose-down, which pushes weight forward off the trailer axle and makes the trailer push the car around in crosswinds. Many crossover setups need little or no drop, and a few need a rise.
The measurement that decides which mount to buy
Level the trailer on its jack
Park the trailer on flat ground and wind the jack until the frame rails read level with a spirit level laid along them.
Measure to the bottom of the coupler
Tape measure from the ground to the underside of the coupler socket. Write it down.
Measure to the top of the receiver tube
Ground to the top inside face of the square tube on the vehicle, with the vehicle unloaded.
Subtract, then allow for squat
The difference is your raw drop or rise. Allow roughly an inch for the vehicle settling once tongue weight is on it - a crossover squats more than a truck for the same load.
What to look for on a crossover setup
- Receiver class, not just tube size. A 2 in tube does not tell you the rating. Read the label riveted to the receiver itself and treat its weight-carrying number as the hardware ceiling.
- Ball diameter from the coupler stamp. Every coupler is stamped with the ball size it is built for. On light trailers that is usually 1-7/8 in or 2 in, and they are not interchangeable. The ball size reference covers what each marking means.
- Wiring before accessories. A crossover rarely leaves the factory with a trailer connector. A vehicle-specific T-connector harness plugs into existing connectors behind a trim panel, which is the difference between an afternoon and a wiring diagram.
- Noise. A quiet cabin makes receiver slop obvious in a way a truck never does. An anti-rattle pin and shim is the cheapest fix on this list and the one owners notice most.
- Ground clearance at the mount. Low vehicles catch long drop mounts on driveway aprons and ramps. Pick the shortest mount that gets the trailer level.
Quick picks
Tap any row to jump to the full write-up. How these are chosen - and what we do and do not claim to know - is published in full on our research methodology page.
| # | Product | Best for | Our read | Price |
|---|---|---|---|---|
| 1 |  CURT Loaded Ball Mount with 2 in Ball (2 in drop, 7,500 lb) Best overall | One trailer at a known height | Ball already fitted and torqued, modest drop | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 2 |  CURT Adjustable Channel Mount with Dual Ball (2 in shank, 6 in drop) Best if you tow two trailers | Garages with several trailers | Two ball sizes on one mount, 6 in of drop | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 3 |  CURT Custom Vehicle-to-Trailer Wiring Harness (T-connector) Best wiring route | Adding trailer wiring without splicing | Plugs into factory connectors, nothing spliced | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 4 |  CURT Anti-Rattle Hitch Pin and Shim (2 in receiver) Cheapest worthwhile upgrade | Killing receiver rattle | Kills the clunk a quiet crossover makes obvious | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
The picks in detail
1. Best overall
CURT Loaded Ball Mount with 2 in Ball (2 in drop, 7,500 lb)
CURT · Best for one trailer at a known height
A one-piece mount with the ball already fitted and torqued, rated to 7,500 lb gross and 750 lb tongue with a 2 in drop. Nothing adjusts, which is exactly why nothing rattles or works loose.
Published specifications
What works
- Arrives with the ball fitted, so there is no torque step to get wrong
- One piece means nothing to loosen or rattle
- Light enough to leave in the receiver or throw in a toolbox
What does not
- The 2 in drop is the only drop - measure before you buy
- 7,500 lb ceiling rules out heavier trailers
Skip it if
Useless on a lifted truck, where a 2 in drop will still leave the trailer nose-high and the weight on the rear axle of the trailer.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: CURT’s own page. We earn nothing on that link.
2. Best if you tow two trailers
CURT Adjustable Channel Mount with Dual Ball (2 in shank, 6 in drop)
CURT · Best for garages with several trailers
One mount that covers two ball sizes and a range of heights, which is the answer when the garage contains a boat trailer, a utility trailer and a camper that all sit at different heights. Capacity drops to the lower-rated ball you are actually using.
Published specifications
What works
- Two ball sizes and a height range in a single mount
- Flipping it gives rise as well as drop
- Rated to 14,000 lb on the larger ball
What does not
- Heavy, and more joints means more places for rattle to start
- The pins and bolts need checking for torque, unlike a one-piece mount
Skip it if
Pointless if you own one trailer and tow it with one truck - a fixed mount at the right height is lighter, quieter and cheaper.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: CURT’s own page. We earn nothing on that link.
3. Best wiring route
CURT Custom Vehicle-to-Trailer Wiring Harness (T-connector)
CURT · Best for adding trailer wiring without splicing

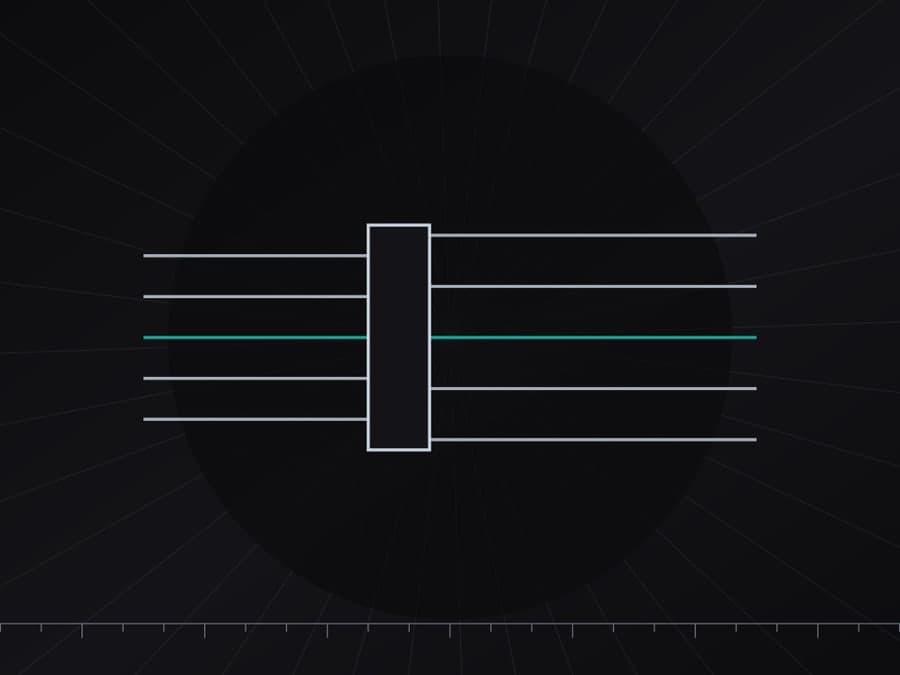

A vehicle-specific harness that plugs into existing factory connectors instead of splicing into tail light wiring. Buying the right one for your exact year and model is the whole job; getting that wrong is why people end up cutting wires they did not need to cut.
We have not sourced a full specification table for this model from the manufacturer’s own site at a stable address. Rather than repeat figures we cannot cite, the assessment above is limited to what the design and the maker’s published description genuinely establish.
What works
- Plugs into factory connectors, so nothing is cut and nothing is taped
- Reversible - the vehicle goes back to standard in minutes
- Avoids the voltage problems that come with scotch-lock splices
What does not
- Vehicle-specific, so the part number must match year, model and trim
- Some vehicles need a separate power feed the harness does not supply
Skip it if
Not the part for a trailer needing electric brakes - that is a 7-way install with a brake controller feed, which a lighting harness does not cover.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: CURT’s own page. We earn nothing on that link.
4. Cheapest worthwhile upgrade
CURT Anti-Rattle Hitch Pin and Shim (2 in receiver)
CURT · Best for killing receiver rattle

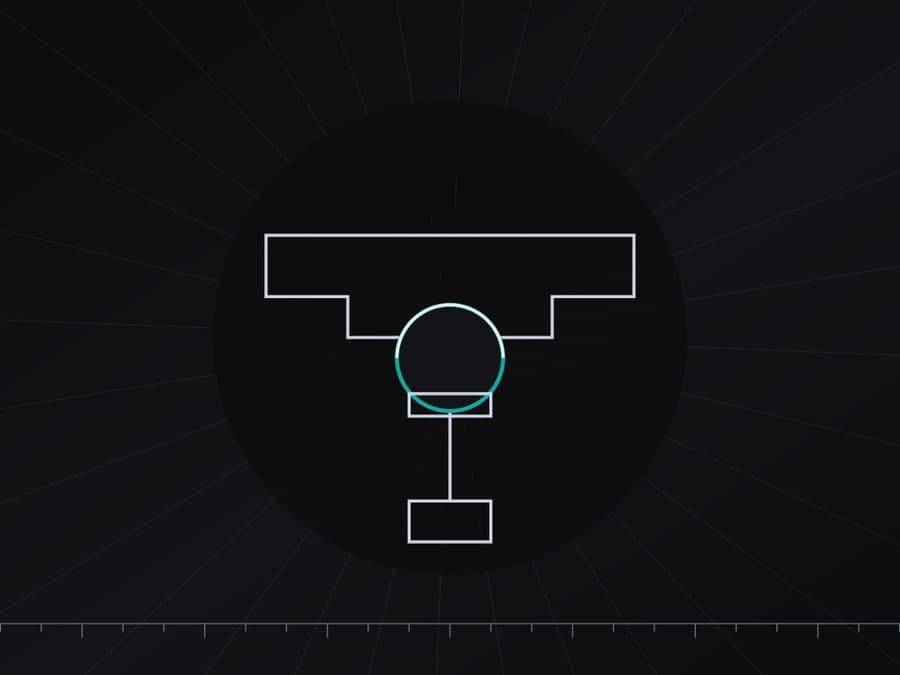

A pin plus a wedge shim that takes the slop out of the gap between a 2 in mount and a 2 in receiver. That gap is a manufacturing tolerance, not a fault, and this is the cheapest thing on the whole site that fixes a real, daily annoyance.
Published specifications
What works
- Removes the clunk over expansion joints for very little money
- Fits in a glovebox and transfers between vehicles
- No modification to the receiver or the mount
What does not
- Does nothing about rattle originating at the coupler or the sway bar
- Listed as superseded, so check the current item number
Skip it if
Not the fix if the noise is coming from a loose ball nut or a worn coupler - find the source first, because a shim will just mask it.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: CURT’s own page. We earn nothing on that link.
What a RAV4 should not be asked to do
Two jobs belong to a different vehicle. The first is a tall travel trailer: the frontal area and the sail effect put side loads into a short, light vehicle that no hitch hardware corrects. The second is a trailer at the very top of the published rating on a long grade - brakes and cooling, not the hitch, are what you run out of there.
If the trailer you have in mind is heavier than a small utility trailer or a pair of jet skis, read the general SUV hitch setup, which works through the same three limits across a wider range of vehicles, and be honest about the payload figure on your own placard rather than the brochure number.
A sensible order to buy in
- Confirm the receiver is rated for what you intend to pull, from its own label.
- Fit wiring that matches the trailer connector you actually have.
- Buy the mount in the drop you measured, not the drop that looks right.
- Buy the ball from the coupler stamp, and torque it to the maker's figure.
- Add an anti-rattle pin, then a lock if the mount lives in the tube.
The same arithmetic runs on other unibody crossovers and wagons, with one extra variable: the receiver opening is not always 2 in. The Subaru Outback setup works through that measurement and what it rules out.
Key takeaways
- Payload, not the tow rating, is what limits a RAV4.
- Tongue weight counts against payload - so do passengers and the roof box.
- A crossover receiver sits low, so most setups need little or no drop.
- A plug-in harness avoids splicing into factory wiring.
- An anti-rattle pin is the upgrade a quiet cabin rewards most.
How we sourced this
Every figure on this page came from one of the following, each fetched while the page was written. Where a manufacturer or regulator does not publish a number, we say so rather than estimate it.
- CURT loaded ball mount, 2 in ball, 2 in drop - published specifications (part 45036)
- CURT adjustable channel mount with dual ball - published specifications (part 45900)
- CURT anti-rattle hitch pin and shim - published specifications (part 22321)
- 49 CFR 571.110 (FMVSS 110) - vehicle placard, including the required "combined weight of occupants and cargo" statement
Common questions
- Can you put a hitch on a RAV4?
- Yes - bolt-on receivers are listed for the RAV4, and on many model years the job is hand tools and a torque wrench. Use the manufacturer's fit guide for your exact year and trim rather than a universal part.
- What size hitch does a RAV4 use?
- Aftermarket receivers for the RAV4 are commonly supplied with a 2 in square opening, but the opening size is not the rating. Read the label on the receiver you have, because class and weight-carrying rating vary by part.
- Do I need a weight distribution hitch on a RAV4?
- Almost never. Weight distribution matters when tongue weight is high enough to lift the front axle, and a crossover reaches its payload limit long before it reaches that point. If the trailer is heavy enough to make you ask, the honest answer is usually a different tow vehicle.
- How much drop do I need for a RAV4?
- Measure it. A crossover receiver sits lower than a pickup's, so many setups need no drop at all and some need a rise. Towing nose-down because the mount was bought on assumption is a real cause of instability.
