Weight Distribution Hitches
The Best Weight Distribution Hitch for a 7,000 lb Trailer
Seven thousand pounds is the band where a half-ton truck stops coping on its own. The bar rating, not the brand, is the decision.
Disclosure: we earn a commission if you buy through the Amazon links on this page, at no extra cost to you. Commission never decides a verdict or a ranking position - read our editorial policy and affiliate disclosure.
How we assessed these: Assessed from each manufacturer's own published ratings and design documentation. This site runs no instrumented tests and publishes no load-transfer figures of its own.
Short answer
For most 7,000 lb trailers the CURT round-bar hitch with sway control is the sensible default: it is rated to 14,000 lb gross and 1,400 lb tongue, so a 700 to 1,050 lb tongue sits mid-range, which is where spring bars work best.
A weight distribution hitch is chosen by tongue weight, not by trailer weight, and that is why shopping for a hitch by your trailer's gross figure sends people wrong. The gross number tells you whether your truck can pull the trailer at all. The spring bars only ever see the load sitting on the ball.

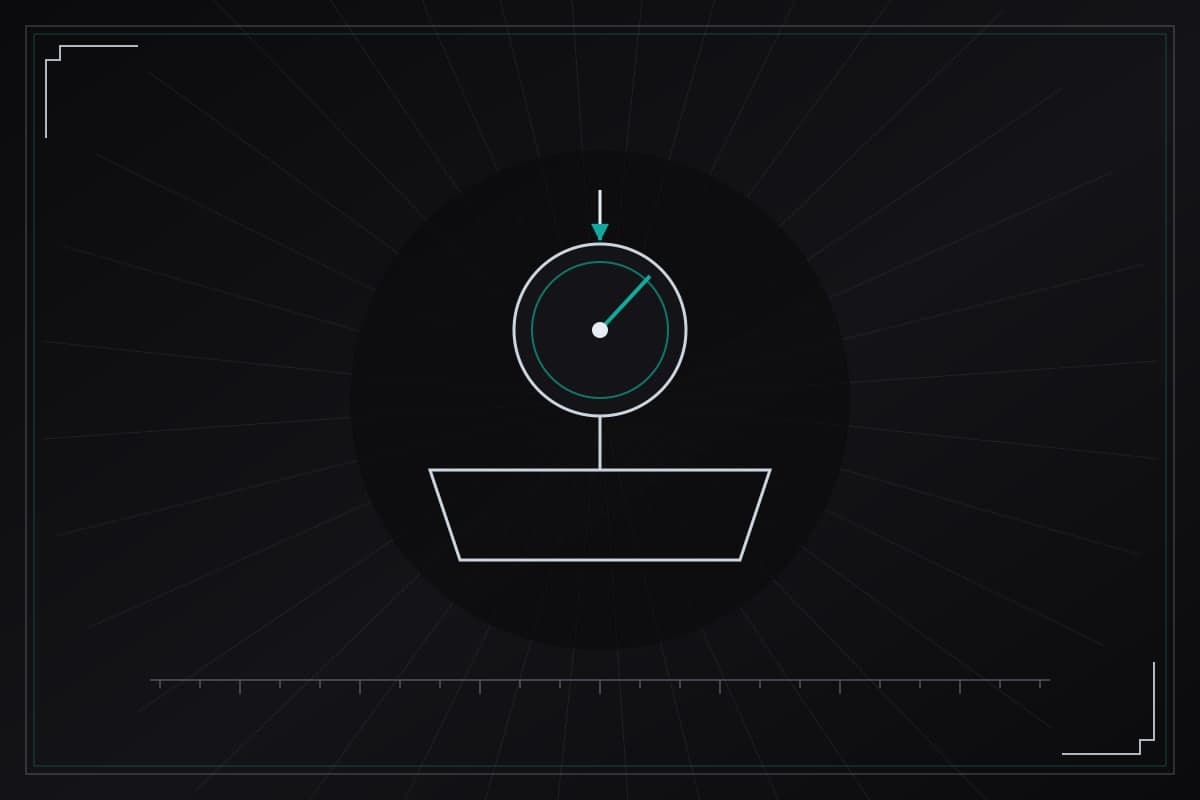

Work out your tongue weight before you shop
A conventional trailer should carry 10 to 15 percent of its loaded weight on the tongue. Run that against 7,000 lb and you get a range rather than a single figure, which is the first thing to understand about this weight class: two owners with identical trailers can need different bars because of how they load them.
| Tongue weight as % of loaded trailer | Load on the ball | What it means for bar choice |
|---|---|---|
| 10 percent | 700 lb | The low end of safe. A 1,000 lb-class bar is working lightly |
| 12.5 percent | 875 lb | The comfortable middle. Aim here if you can load for it |
| 15 percent | 1,050 lb | Upper limit of the band. Check payload before anything else |
Arithmetic on the 10 to 15 percent tongue weight band. It is a guide to what to expect, not a substitute for weighing your own trailer loaded.
Note what the table does not say: it does not tell you your tongue weight. Measure it loaded, the way you actually tow, with propane, batteries, water and whatever lives in the front storage box. A trailer advertised at 7,000 lb gross is rarely towed at its dry weight.
What to look for in this weight band
- A bar rating that puts your tongue weight in the middle of its range. A bar run near its limit flexes less than it was designed to and transfers less load. A bar run far below its rating barely flexes at all. The middle is where the engineering lives.
- Integrated sway control rather than a bolt-on friction bar. At 7,000 lb a separate friction bar is not enough on its own, and it is one more thing to remember to release before you back into a site.
- Ground clearance that matches your driveway. Round bars hang lower than trunnion bars. If you cross steep transitions regularly, that is a real difference and not a specification detail.
- A head you can lubricate, or one designed not to need it. Most of the groaning people mistake for a failing hitch is a dry head.

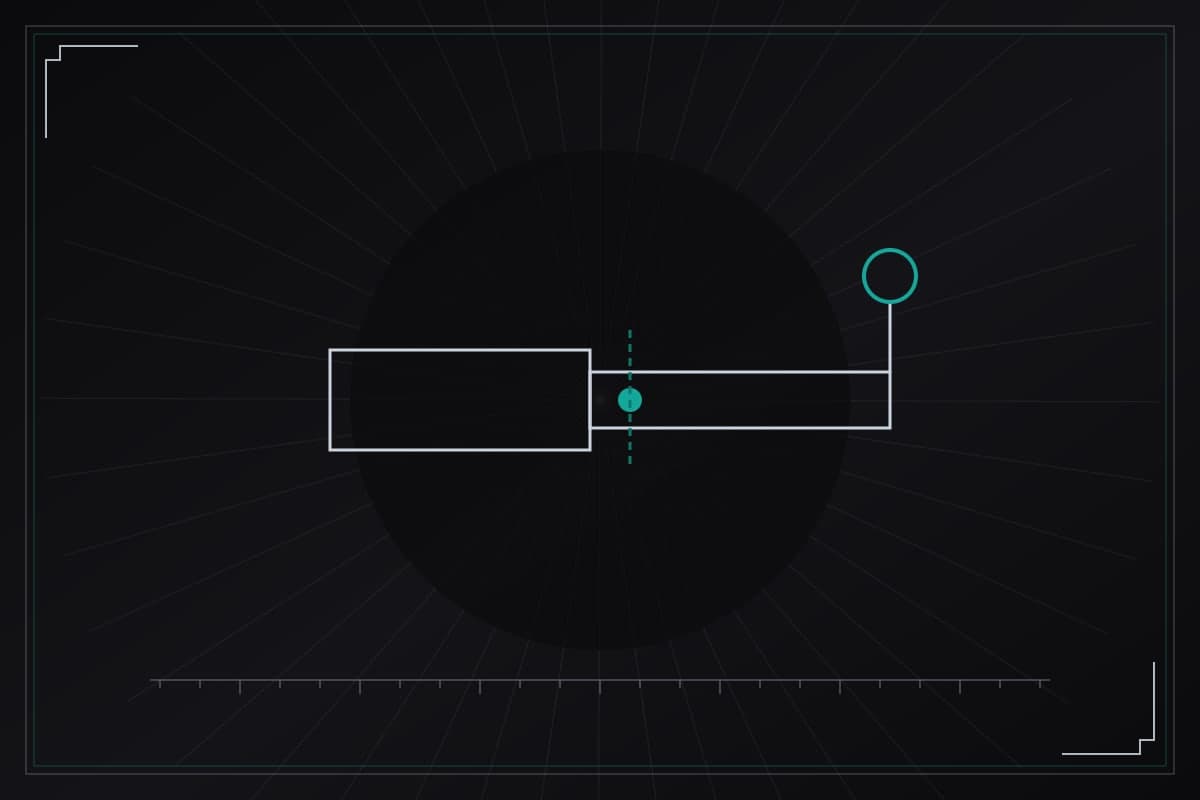

- Honest receiver ratings. Your receiver carries two numbers, weight-carrying and weight-distributing. The higher one only applies when the hitch is actually fitted.
Quick picks
Tap any row to jump to the full write-up. How these are chosen - and what we do and do not claim to know - is published in full on our research methodology page.
| # | Product | Best for | Our read | Price |
|---|---|---|---|---|
| 1 |  CURT Round Bar Weight Distribution Hitch with Sway Control (14K) Best overall | Mid-size travel trailers | 14,000 lb gross, 1,400 lb tongue, lubricated head | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 2 |  Fastway e2 Weight Distribution Hitch with Built-in Sway Control Best first hitch | A first weight distribution hitch | Friction is always on, nothing to disengage | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 3 |  Equal-i-zer 4-point Sway Control Hitch Best if it already sways | Travel trailers that already sway | Four friction points built into the geometry | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 4 |  Blue Ox SwayPro Weight Distribution Hitch Best for frequent hitching | Owners who hitch and unhitch often | Clamp-on latches, bars sold in tongue-weight bands | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
The picks in detail
1. Best overall
CURT Round Bar Weight Distribution Hitch with Sway Control (14K)
CURT · Best for mid-size travel trailers
A conventional round-bar system with integrated lubrication and sway control, rated to 14,000 lb gross and 1,400 lb tongue. The built-in lubrication matters more than it sounds: a dry weight distribution head is the usual source of the groaning people mistake for a failing hitch.
Published specifications
What works
- Integrated lubrication at the head, which is where the noise usually comes from
- Round bars sit lower and clear more trailer tongues than trunnion bars
- Limited lifetime warranty
What does not
- Round bars hang lower than trunnion bars and are the first thing to catch on a steep driveway
- Sway control here is a function of the head, not an adjustable four-point system
Skip it if
Skip it if you regularly cross steep transitions - a round bar is the lowest part of the whole rig and will find the pavement before anything else does.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: CURT’s own page. We earn nothing on that link.
2. Best first hitch
Fastway e2 Weight Distribution Hitch with Built-in Sway Control
Fastway · Best for a first weight distribution hitch
Sway control by steel-on-steel friction between the bars and their brackets, with no separate friction bar and nothing to remove before backing up. Available in round and trunnion bar versions, which is the detail to get right: trunnion for ground clearance, round for a lower-profile head.
We have not sourced a full specification table for this model from the manufacturer’s own site at a stable address. Rather than repeat figures we cannot cite, the assessment above is limited to what the design and the maker’s published description genuinely establish.
What works
- Nothing to engage or disengage - friction is always working
- Sold in both round-bar and trunnion-bar versions for different A-frame heights
- Simple enough that a first-timer can set it up from the manual
What does not
- Friction surfaces must stay clean and un-greased, which is the opposite of most hitch maintenance habits
- Noisy in tight, slow turns
Skip it if
Avoid it if you tow mostly on dirt or gravel - grit on the friction faces is exactly what the design does not want.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: Fastway’s own page. We earn nothing on that link.
3. Best if it already sways
Equal-i-zer 4-point Sway Control Hitch
Equal-i-zer · Best for travel trailers that already sway
The reference point for integrated sway control. Friction happens at four places at once - both L-brackets and both sockets - so resistance is always on rather than something you remember to engage. Setup is bracket-height and bar-angle work, and it rattles; both are the price of a system with no separate parts to forget.
We have not sourced a full specification table for this model from the manufacturer’s own site at a stable address. Rather than repeat figures we cannot cite, the assessment above is limited to what the design and the maker’s published description genuinely establish.
What works
- Sway resistance is built into the geometry, so there is nothing to connect or disconnect at the ramp
- Works in reverse and in the wet, unlike a friction bar you have to release
- One assembly rather than a hitch plus a bolt-on sway bar
What does not
- Audible rattle and creak at low speed is normal and surprises first-time owners
- Bracket height and bar angle have to be set properly or the sway control does little
Skip it if
Skip it if your loaded tongue weight sits well inside your receiver's weight-carrying rating and the truck stays level - you would be buying hardware to solve a problem you do not have.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: Equal-i-zer’s own page. We earn nothing on that link.
4. Best for frequent hitching
Blue Ox SwayPro Weight Distribution Hitch
Blue Ox · Best for owners who hitch and unhitch often
Underslung spring bars on clamp-on latches, which makes hitching faster than chain-and-snap-up systems and keeps the bars out of the way of a low A-frame. Blue Ox publishes the range in tongue-weight bands rather than one do-everything model, so the sizing decision is made before you buy.
Published specifications
What works
- Latches clamp on rather than needing chains snapped up under tension
- Sold in defined tongue-weight bands, which makes correct sizing the default
- Underslung bars clear low A-frames and front storage boxes
What does not
- Bar bands are narrow, so a big change in how you load the trailer can put you in the wrong band
- Clamp-on brackets are another part to keep clean and lubricated
Skip it if
Not the one if your loaded tongue weight sits near the top of a band - buy up a band, because a bar run at its limit transfers less than a bar running in the middle of its range.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: Blue Ox’s own page. We earn nothing on that link.
The sizing mistake that costs people money
The common error is ordering bars by trailer gross weight. Someone with a 7,000 lb trailer sees a hitch sold as a 10,000 to 15,000 lb system, reasons that bigger is safer, and ends up with bars that will not flex under an 800 lb tongue. The truck still squats, the sway is still there, and the hitch gets blamed for a sizing decision.
The second mistake is skipping the payload check. A 1,000 lb tongue weight is 1,000 lb of payload gone before anyone sits in the truck, and a weight distribution hitch does not change that - it moves load between axles, it does not delete it. Payload and tow rating are separate limits, and payload is usually the binding one on a half-ton.
If the answer turns out to be no
Not every 7,000 lb trailer needs one. If your receiver's weight-carrying rating already covers your measured tongue weight and the truck stays level when hitched, you are not solving a problem. Run the three checks first - it takes about twenty minutes and it is free.
Key takeaways
- Bars are sized by tongue weight, never by trailer gross weight.
- A 7,000 lb trailer normally sits between 700 and 1,050 lb on the ball.
- Aim for the middle of a bar's rated range, not the top or the bottom.
- Check payload before you check hitch ratings - it binds first on a half-ton.
How we sourced this
Every figure on this page came from one of the following, each fetched while the page was written. Where a manufacturer or regulator does not publish a number, we say so rather than estimate it.
- CURT round bar weight distribution hitch with sway control - published specifications (part 17063)
- Blue Ox SwayPro weight distribution hitch - published tongue weight bands and towing capacity
- Equal-i-zer hitch - manufacturer site
- Fastway Trailer Products - manufacturer site
- 49 CFR 567.4 - certification label content, including Gross Vehicle Weight Rating and Gross Axle Weight Rating
Common questions
- Does a 7,000 lb trailer always need a weight distribution hitch?
- Not automatically. It needs one if the measured loaded tongue weight exceeds the receiver's weight-carrying rating, or if the tow vehicle's front end rises when you hitch up. Many half-ton receivers are rated below 1,000 lb weight-carrying, which is why trailers this size usually do.
- What bar rating should I order for a 7,000 lb trailer?
- Whichever band contains your measured loaded tongue weight, with the figure sitting in the middle of the band rather than at either end. For most 7,000 lb trailers that means a bar rated somewhere around 1,000 lb, but measure before ordering.
- Can I use a hitch rated to 14,000 lb on a 7,000 lb trailer?
- Yes, provided the bar rating suits your tongue weight. The gross rating is a ceiling, not a target. What matters is whether the bars flex properly under the load on your ball.
- Will a weight distribution hitch raise my tow rating?
- No. It can unlock the higher weight-distributing rating printed on your receiver, but the vehicle's tow rating and payload are set by the manufacturer and no hitch changes them.
