Do I Need a Weight Distribution Hitch for a 5,000 lb Trailer?
This is the weight class where the answer flips depending on what is towing. A mid-size SUV and a three-quarter-ton truck get different answers from the same trailer.
Disclosure: we earn a commission if you buy through the Amazon links on this page, at no extra cost to you. Commission never decides a verdict or a ranking position - read our editorial policy and affiliate disclosure.
Short answer
A 5,000 lb trailer carries roughly 500 to 750 lb on the tongue. Behind a full-size truck with a receiver rated above that, you usually do not need a weight distribution hitch. Behind a mid-size SUV, or a vehicle whose manual sets a lower limit, you usually do.
Five thousand pounds is the most genuinely ambiguous number in towing. Below about 3,000 lb almost nobody needs load transfer. Above about 7,000 lb almost everybody does. At 5,000 lb the answer is decided by the tow vehicle, which is why advice on this weight class contradicts itself so often - people are answering different questions.
Step one: the arithmetic
A conventional trailer should carry 10 to 15 percent of its loaded weight on the tongue. At 5,000 lb loaded that is 500 lb at the bottom of the band and 750 lb at the top. Those two figures land on opposite sides of a lot of receiver ratings, which is the first reason this weight class is contested.
| Percentage on the tongue | Load on the ball | Typical verdict |
|---|---|---|
| 10 percent | 500 lb | Inside most full-size truck weight-carrying ratings |
| 12.5 percent | 625 lb | Borderline on many mid-size vehicles |
| 15 percent | 750 lb | Over the carrying rating on a good number of SUVs |
Arithmetic on the 10 to 15 percent band. Your own loaded tongue weight is the only figure that decides your case.
Step two: read the two labels
The receiver label carries a weight-carrying rating and a weight-distributing rating. Weight-carrying is what you may put on a plain ball mount. The higher weight-distributing figure applies only when a weight distribution hitch is fitted. If your measured tongue weight exceeds the weight-carrying rating, the hitch is not an improvement - it is the condition under which the receiver is rated to carry that load at all.
The second label is the door-jamb sticker, which gives the combined weight of occupants and cargo your vehicle may carry. Tongue weight counts against it. A 700 lb tongue on a vehicle with 1,100 lb of payload leaves 400 lb for people, gear and the hitch itself - and the hitch assembly can be close to 100 lb. Reading the sticker correctly is often where the real limit turns up.
Many tow vehicle manuals also state a trailer weight above which the maker requires a weight distributing hitch. That instruction is not advice. If your manual names a figure below 5,000 lb, your question is already answered.
Step three: the fender test
What the vehicle tells you
Measure both wheel arches unhitched
On flat ground, ground to the top of the front arch and then the rear. Write both down.
Hitch up loaded, with a plain ball mount
The trailer loaded the way you actually tow it.
Measure both arches again
The rear will drop. The question is what the front did.
Read it
A front arch that rose more than roughly an inch means you are unloading the front axle enough to affect steering and braking. That is a weight distribution case whatever the ratings say.
What to look for if the answer is yes
- A bar rating that brackets your tongue weight in the middle. For a 5,000 lb trailer that is commonly a bar in the 600 to 800 lb class. Over-rated bars will not flex under this load.
- Integrated sway control if the trailer is tall or long. A 5,000 lb travel trailer has far more side area than a 5,000 lb utility trailer, and side area is what crosswinds and passing trucks act on.
- Weight you can actually handle. At this trailer size an assembly near 100 lb is a real consideration, and lighter chain-type systems exist for exactly this reason.
- Clearance for your driveway. Round bars hang lowest. Round against trunnion is a clearance decision more than a performance one.
Quick picks
Tap any row to jump to the full write-up. How these are chosen - and what we do and do not claim to know - is published in full on our research methodology page.
| # | Product | Best for | Our read | Price |
|---|---|---|---|---|
| 1 |  Sherline Trailer Tongue Weight Scale Start here | Measuring tongue weight at home | The measurement the whole decision rests on | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 2 |  Fastway e2 Weight Distribution Hitch with Built-in Sway Control If the answer is yes | A first weight distribution hitch | Simple setup, friction sway control always on | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
| 3 |  CURT Sway Control Kit If it only wanders | Light trailers that wander | Adjustable friction bar, 14 lb, no load transfer | Check price on Amazon #ad Affiliate link - we publish no price; Amazon shows the current one |
1. Start here

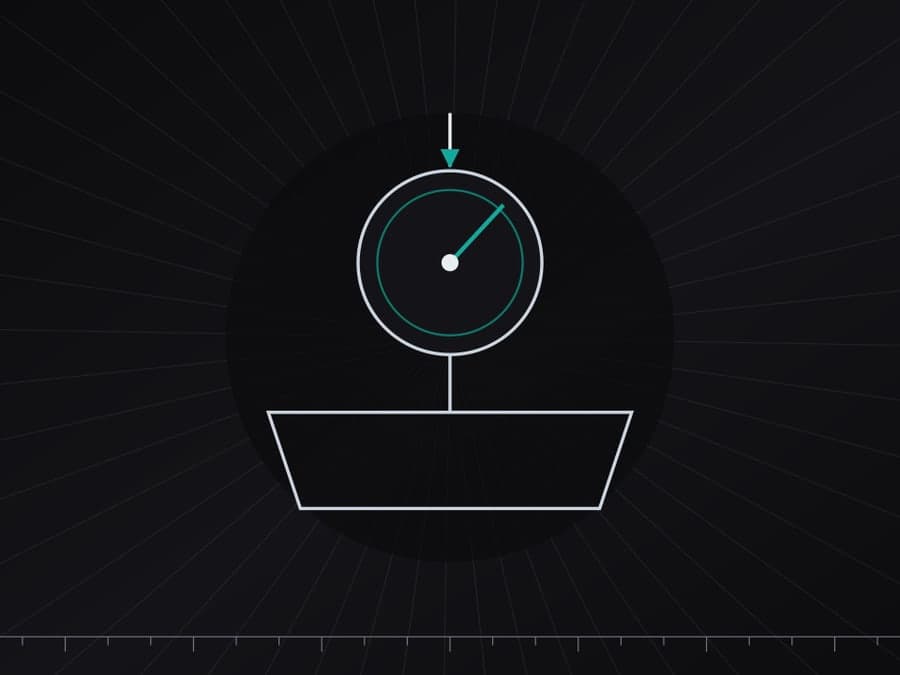

Sherline Trailer Tongue Weight Scale
Sherline · Best for measuring tongue weight at home
A dedicated scale you sit under the coupler to read tongue weight directly, with no arithmetic and no trip to a weighbridge. It is the one tool on this site that turns the single most important towing number from a guess into a measurement.
We have not sourced a full specification table for this model from the manufacturer’s own site at a stable address. Rather than repeat figures we cannot cite, the assessment above is limited to what the design and the maker’s published description genuinely establish.
What works
- Direct reading, with no bathroom-scale-and-lever arithmetic
- Repeatable, so you can see what moving the load actually does
- Mechanical gauge with no batteries to be flat when you need it
What does not
- Must be used on level ground with the coupler at towing height
- Single-purpose tool that spends most of its life in a cupboard
Skip it if
Unnecessary if your hitch already has a built-in gauge, or if you have a public scale nearby and are happy to use it.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: Sherline’s own page. We earn nothing on that link.
2. If the answer is yes
Fastway e2 Weight Distribution Hitch with Built-in Sway Control
Fastway · Best for a first weight distribution hitch
Sway control by steel-on-steel friction between the bars and their brackets, with no separate friction bar and nothing to remove before backing up. Available in round and trunnion bar versions, which is the detail to get right: trunnion for ground clearance, round for a lower-profile head.
We have not sourced a full specification table for this model from the manufacturer’s own site at a stable address. Rather than repeat figures we cannot cite, the assessment above is limited to what the design and the maker’s published description genuinely establish.
What works
- Nothing to engage or disengage - friction is always working
- Sold in both round-bar and trunnion-bar versions for different A-frame heights
- Simple enough that a first-timer can set it up from the manual
What does not
- Friction surfaces must stay clean and un-greased, which is the opposite of most hitch maintenance habits
- Noisy in tight, slow turns
Skip it if
Avoid it if you tow mostly on dirt or gravel - grit on the friction faces is exactly what the design does not want.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: Fastway’s own page. We earn nothing on that link.
3. If it only wanders

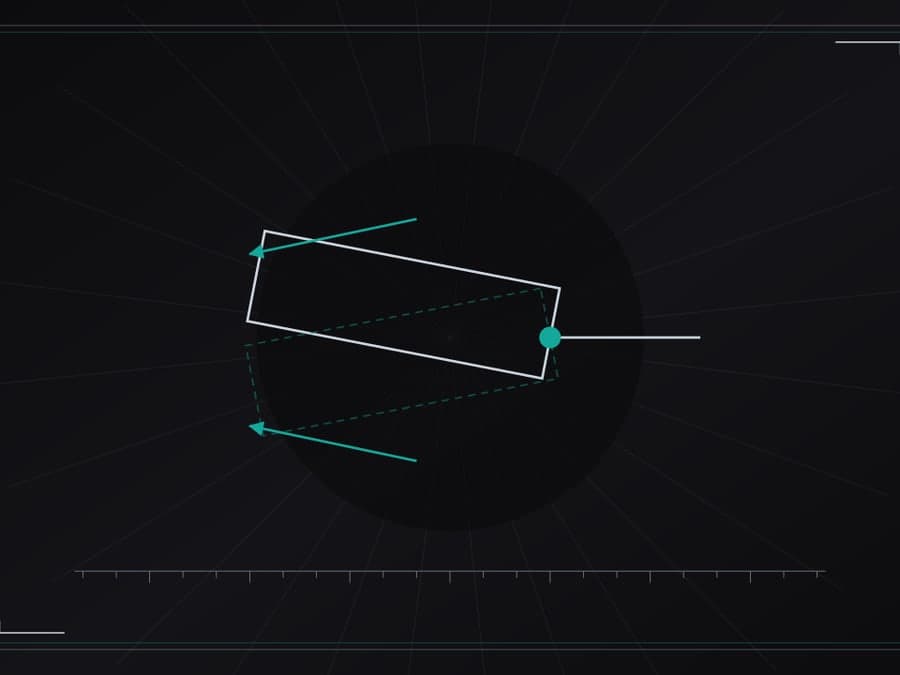

CURT Sway Control Kit
CURT · Best for light trailers that wander
A single friction bar between the trailer tongue and the ball mount, with adjustable tension. It damps yaw; it does not transfer load. On a light trailer that wanders a little it is the cheapest honest fix, and on a heavy one it is not enough on its own.
What works
- Simple, serviceable and easy to fit to an existing ball mount
- Tension is adjustable, so you can match it to the trailer
- Takes minutes to add to a setup you already own
What does not
- Must be disconnected before backing up tightly or in icy conditions
- Damps sway but does nothing about a tow vehicle that is squatting
Skip it if
The wrong answer if your truck sags at the back when the trailer is on - that is a load-distribution problem and a friction bar will not touch it.
#ad Affiliate link - we publish no price; Amazon shows the current one
Raw specifications: CURT’s own page. We earn nothing on that link.
When the answer is no
- Full-size truck, measured tongue weight inside the carrying rating, truck sits level. Nothing to fix. Spend the money on a tongue weight scale and wheel chocks.
- The trailer only wanders slightly in crosswinds. That is a yaw problem, not a load problem. A friction bar costs a fraction of a full system.
- Boat trailer with surge brakes, or a maker who prohibits spring bars. The prohibition decides it.
- Fifth wheel or gooseneck. The load is ahead of the rear axle; there is no lever to counteract.
Key takeaways
- A 5,000 lb trailer puts roughly 500 to 750 lb on the ball.
- Behind a full-size truck the answer is often no; behind a mid-size vehicle, often yes.
- The tow vehicle manual may require one outright - check it first.
- A front wheel arch that rises more than about an inch answers the question on its own.
How we sourced this
Every figure on this page came from one of the following, each fetched while the page was written. Where a manufacturer or regulator does not publish a number, we say so rather than estimate it.
- 49 CFR 567.4 - certification label content, including Gross Vehicle Weight Rating and Gross Axle Weight Rating
- 49 CFR 571.110 (FMVSS 110) - vehicle placard, including the required "combined weight of occupants and cargo" statement
- Fastway Trailer Products - manufacturer site
- CURT sway control kit - published specifications (part 17200)
- Sherline Products - manufacturer site
Common questions
- Does a 5,000 lb travel trailer need a weight distribution hitch?
- More often than a 5,000 lb utility trailer does, because a travel trailer is tall and long and generates far more yaw in crosswinds. The load test is the same, but the sway argument is much stronger.
- My SUV is rated to tow 5,000 lb. Is that enough on its own?
- No. Tow rating covers the powertrain and brakes. The receiver's weight-carrying rating and your payload are separate limits, and on a mid-size SUV one of those is usually the binding one.
- Can I just add air bags instead?
- Air bags level the vehicle but do not move load forward onto the front axle, so they do not address the unloaded front end or the receiver rating. They solve a ride-height problem, not a load-path problem.
- What if my tongue weight is right at the carrying rating?
- Treat at-the-limit as over it. Ratings are ceilings, and the weight in a trailer grows over a season as gear accumulates. If you are within a few percent, fit the hitch.
